SBR  Premium Standard Roller Chain

ANSI｜Single Pitch｜Standard

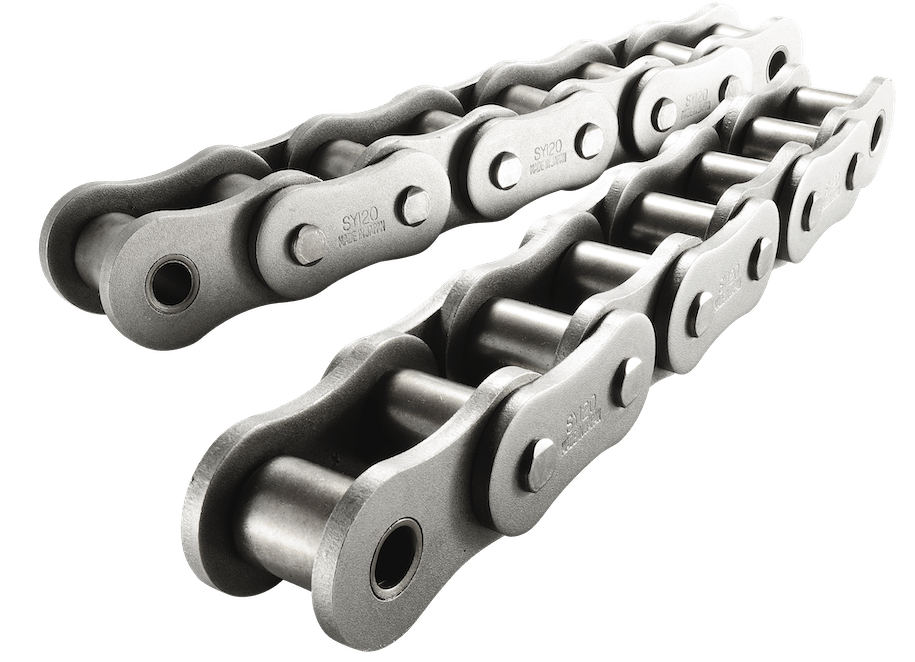

“SBR” (Solid Bushing & Roller) is the product type of SUGIYAMA premium standard roller chain. Our premium roller chains are made with solid bushings and solid rollers, specially treated pins and bushings, and a stringently controlled heat treatment process.
These are only a few of the many features built into SY branded chains. They meet or exceed ANSI roller chain standard B29.1, making it the most suitable selection for almost any application.

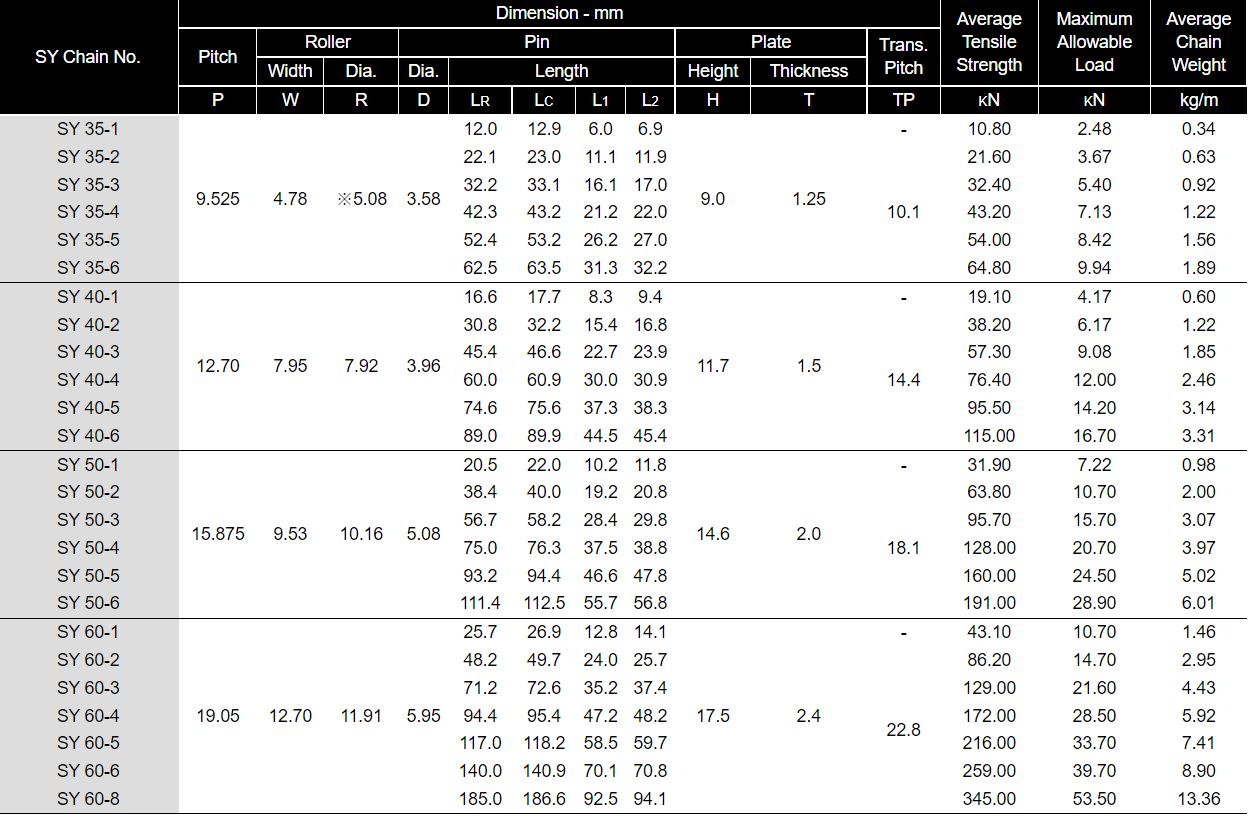

SBR      SBRSBR                                                                                                                                                                                                                        SBR※ Chain is rollerless. Dimension shown is bushing diameter.
Takes account of a 35% reduction of fatigue strength when a single pitch offset link is used.

btn



SBR  SBR

                                                                                                                                                                                                                        SBR

SBR

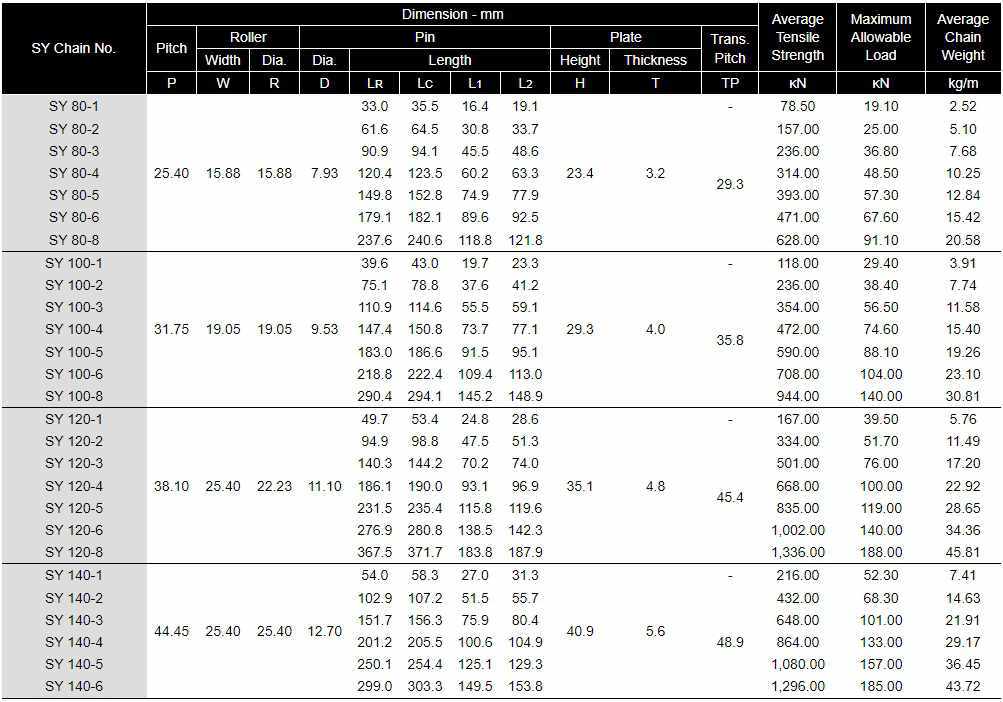

Connecting links are “clip” style for size 80-1 SBR and size 80-2 SBR. Takes account of a 35% reduction of fatigue strength when a single pitch offset link is used.

SBR



SBR     SBR

                                                                                                                                                                                                                       SBR

SBR

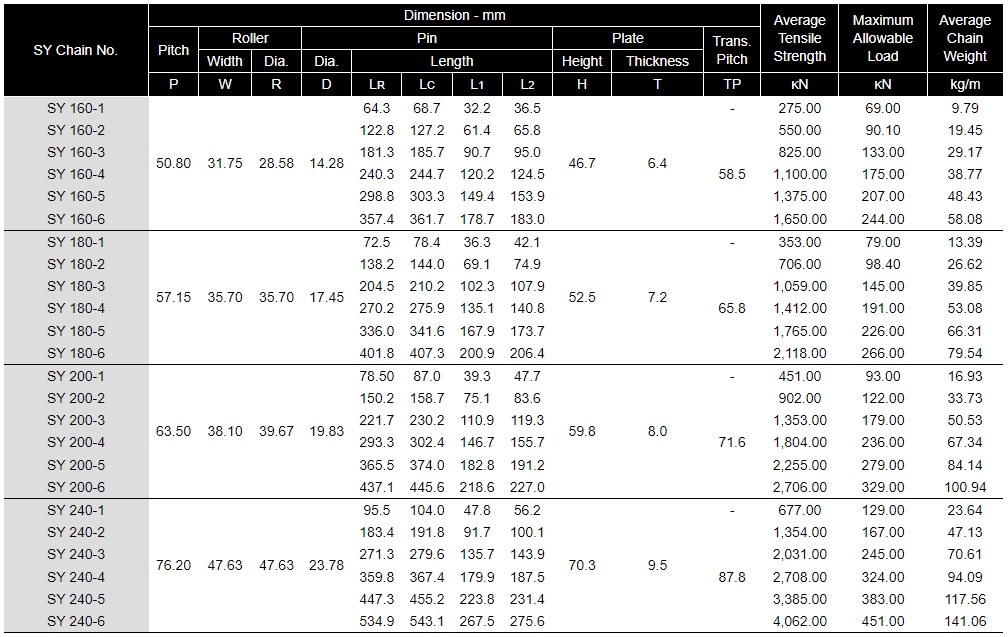

Connecting links are “through S pin” style for all sizes above 200 SBR. Takes account of a 35% reduction of fatigue strength when a single pitch offset link is used.
